CNC Mini-Mill

Corner Radius for The Machinist's Friend, a Valuable Utility Program to Solve Various Trigonometry Calculations. Such as Right Triangles, Oblique Triangles, Sine-Bar, Bolt Circle, Circle, Chords, Hexagons, Squares, Speeds and Feeds.

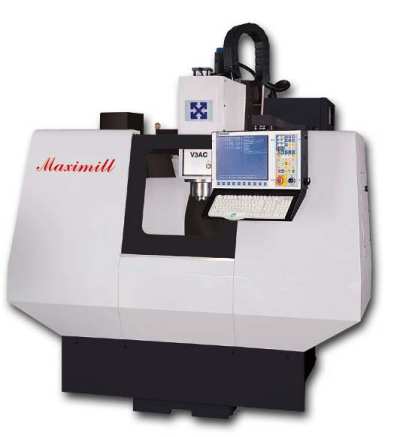

An example of Advanced Machinery Atrump MaxiMill with Centroid controls.



Mini-Mill Standard Features
Work table 36" X 14" (914x356 mm)
Table load Up to 660 lbs. (300 kgs)
X,Y,Z Travels 26" x 16" x 16" (660 x 406 x 405 mm)
Spindle nose to table 3.5" to 19.5" (90 ~ 495 mm)
Spindle center to column 17" (430 mm)
Spindle taper CAT #40
Spindle speed 60 ~ 6000 rpm
Spindle motor 7.5 HP Inverter Controlled
Lubrication Automatic Lubrication Included
Coolant Automatic Coolant Included
Lighting Work Light Included
Max Cutting 160 ipm (4060 mm)
Rapid feed 200 ipm (5080 mm)
Floor space (LxWxH) 112" x 57" x 85"
(2850 x 1450 x 2050 mm)
Weight (approx.) 4200 lbs. (1900 kgs)
Accepted power choices 208 - 240 VAC 3-phase
240 VAC single phase
440 VAC 3-phase, optional


Advanced Machinery Resources text bullet Control Standard Features
Advanced Machinery Resources text bullet High Speed Machining with: accel/decel and cutter-comp lookahead
Advanced Machinery Resources text bullet Part program graphics
Advanced Machinery Resources text bullet Solid State hard drive
Advanced Machinery Resources text bullet Resume job after pause or halt
Advanced Machinery Resources text bullet Conversational programming
Advanced Machinery Resources text bullet Pocketing Canned Cycles
Advanced Machinery Resources text bullet Cleanout of Irregular Pockets
Advanced Machinery Resources text bullet Drag Plot diagnostic (patent pending)
Advanced Machinery Resources text bullet Job run time estimator with parts counter
Advanced Machinery Resources text bullet Programmable Spindle Speed
Advanced Machinery Resources text bullet 200 Position tool library
Advanced Machinery Resources text bullet English, French, Spanish and other languages
Advanced Machinery Resources text bullet Color screen
Advanced Machinery Resources text bullet 3.5" Floppy
Advanced Machinery Resources text bullet PC-LAN ready
Advanced Machinery Resources text bullet EIA Fanuc style G-codes
Advanced Machinery Resources text bullet Drilling canned cycles
Advanced Machinery Resources text bullet Teach mode
Advanced Machinery Resources text bullet Electronic travel limits
