CNC Bed Mills

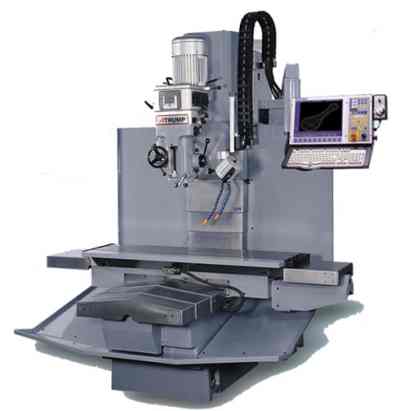

Atrump B6FC-W
WITH CENTROID CONTROL (M400)
| Work Table | 14" x 52" (355 X 1320 mm) |
| Table T-slots | (WxN) 0.71" (18 mm) x 3 |
| Table load max | 1100lbs (500kgs) (center) |
| X-axis travel | 42" (1060mm) |
| Y-axis travel | 22" (560mm) |
| Z-axis travel | 24-7/8" (630mm) |
| Spindle nose to table | 5-1/4" ~ 30-1/8" (135~765mm) |
| Spindle taper | N.S.T. #40 |
| Spindle speed | 40-4000 R.P.M |
| Spindle motor | 6HP |
| 3-Axis Drive motor | DC or AC servo motor |
| Coolant pump motor | 1/8 HP |
| Cutting feed | 3.5M/min (140 ipm) |
| Rapid feed | 5M/min (200 ipm) |
| Quill diameter | Ø 4-5/16" (110mm) |
| Quill travel | 6" (152mm) |
| Quill feed | 0.02, 0.04, 0.06" (0.0508, 0.1016, 0.1524mm) |
| Floor space (LxWxH) | 126x81x110" (3200x2050x2800mm) |
| Weight (Approx.) | 6160lbs (2800kgs) |
| Packing size (LxWxH) | 79x90x90" (2000x2280x2280mm) |

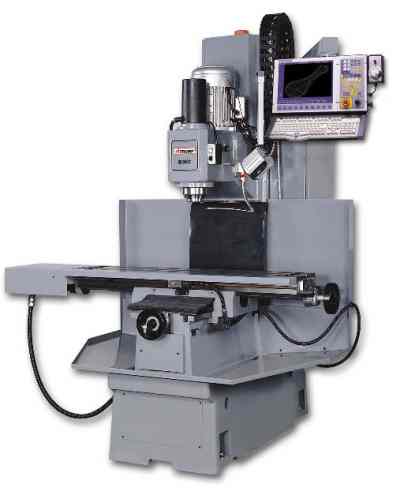

Atrump B3EC
WITH CENTROID CONTROL (M400)
| Work Table | 50" X 10" (1270x254mm) |
| Table load max | 770 lbs. (350 kg) |
| X-axis travel | 31.5" (800mm) |
| Y-axis travel | 16"" (410mm) |
| Z-axis travel | 18.75" (475mm) |
| Spindle nose to table | 3.5" to 22.25" (90-565 mm) |
| Spindle taper | N.S.T. #40 |
| Spindle speed | 60-6000 R.P.M |
| Spindle motor | 5 HP Inverter Controlled |
| Cutting feed | 160 ipm (4060 mm) |
| Rapid feed | 200 ipm (5080 mm) |
| Floor space (LxWxH) | 112" x 57" x 80" (2850 x 1450 x 2050 mm) |
| Weight (Approx.) | 4100 lb. (1850 kg) |

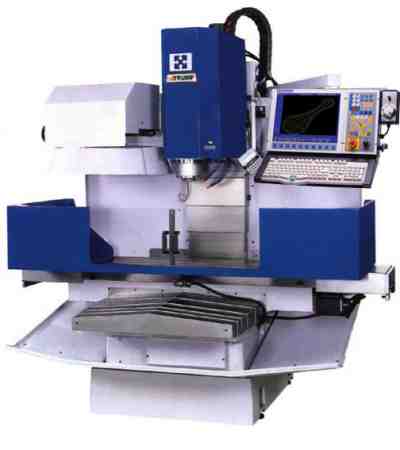

Atrump B8AC
WITH CENTROID CONTROL (M400)
Specifications: Model B8AC
| Work Table | 405mm x 1475mm (16" x 58") |
| Table load max | 1100kg (2420lbs)(center) |
| X-axis travel | 1270mm (50") |
| Y-axis travel | 560mm (22") |
| Z-axis travel | 635mm (25") |
| Spindle nose to table | 105-715mm (4"-28") |
| Spindle taper | N.S.T. #40 (45° RET. KNOB) |
| Spindle speed | 60-6000 R.P.M |
| Spindle motor | 10HP(STD.) 15HP(OPT.) |
| Cutting feed | 4M/min (1~160 ipm) |
| Rapid feed | 6M/min (240 ipm) |
| Floor space (LxWxH) | 3630x2070x2200mm (143x84.5x86.6") |
| Weight (Approx.) | 3800 kgs (8360 lbs) |
0.0004" Positioning Accuracy
0.0002" Positioning Repeatability
 |
Centroid M-400 CNC Controller 3Axes and 4th axis ready. |
|
Full Function EIA FANUC STYLE G-codes |
|
Conversation & 3D. Graphical Shop Floor programming with CAD /CAM ready. |
|
Full key board function. |
|
Auto Spindle speed control |
|
Program Graphics and Unlimited Program. |
|
Work coordinate systems (G28-30,52-59). |
|
MasterCam Level 1 / Programmable Spindle Speed. |
|
Table guard , Chip Tray, Box way on Y & Z and Telescoping cover. |
|
Rigid Meehanite casting. |
|
Hardened and ground on slide way & table. |
|
Turcite B coating on X, Y & Z axis. |
|
Class 7 precision bearing on spindle. |
|
Hardened & ground precision ball-screw. |
|
Auto lubrication system. |
